Description
Gravitymon PCB for ESP32c3 Zero PET
Gravitymon is a electronic hydrometer software that can be used to measure gravity and temperature during
fermentation of beer and report the progress to a number of external services. Is uses a gyro to measure the
gravity since there is a correlation between gravity an the density of the fluid. Based on the density the
hydrometer will float at a different angle. The graph below is an example on how the fermentation process
can be tracked.
Code
Source code
https://github.com/mp-se/gravitymon

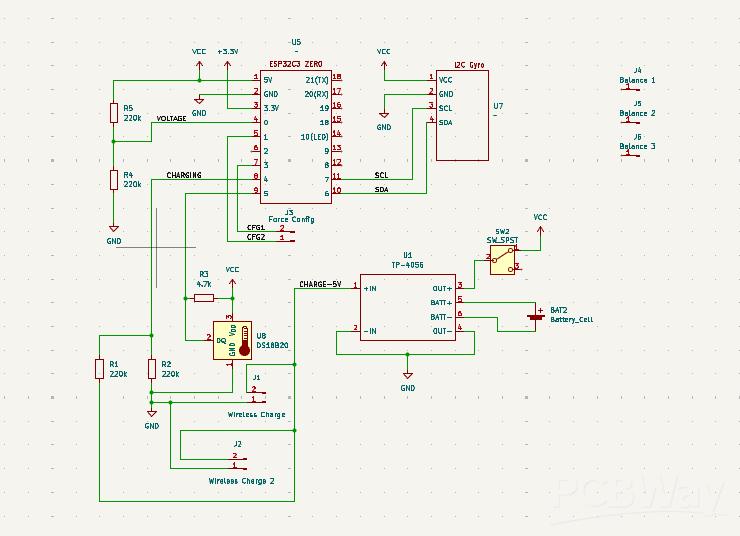

Schematic and Layout
Oct 22,2025
22 views

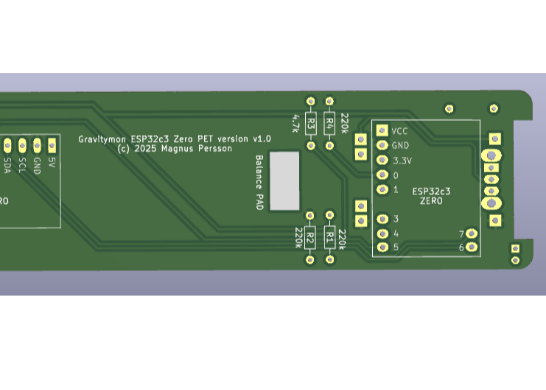

Gravitymon PCB for ESP32c3 Zero PET
2 Layers PCB 30.7 x 123.2 mm FR-4, 1.6 mm, 1, HASL with lead, Purple Solder Mask, White silkscreen
Gravitymon PCB for beer fermentation tracking
