Description

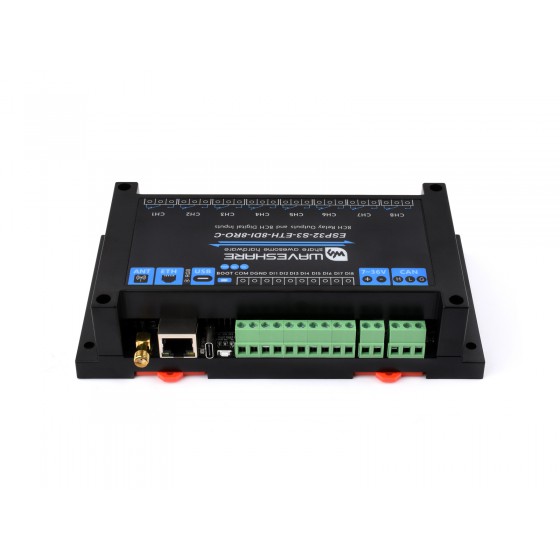

Industrial 8-Ch ESP32-S3 WiFi Relay Module

Based on ESP32-S3, Supports WiFi / Bluetooth

Onboard Digital input, CAN, and ethernet port interfaces. Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable

Version options

ESP32-S3-ETH-8DI-8RO-C

Common network port + isolated CAN

8-ch digital inputs + 8-ch relays

Based on ESP32-S3, Designed for AIoT market

Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication

Onboard multiple isolation protection circuits

Multiple protections, more safe and reliable

Supports CAN and Bluetooth / WIFi remote control

Onboard 8-ch relays and 8-ch digital inputs

Contact rating of the onboard relay up to 10A 250V AC / 30V DC

Directly controlling 220VAC home appliances, or devices below 30V DC

Digital input

Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

Supports Arduino IDE

Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

Optional for PoE function

built-in PoE module, providing both network connection and power supply in one cable

* the PoE function is only available on ESP32-S3-POE-ETH-8DI-8RO-C version, and the switch shown in the picture is NOT included.

Application Examples

Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight

MQTT Protocol To Achieve Data Visualization Service

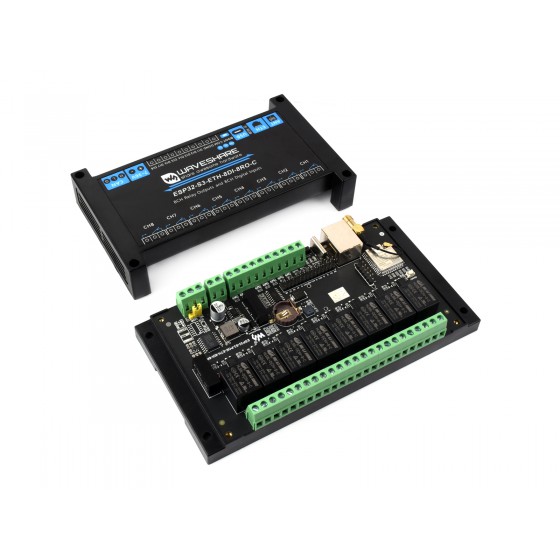

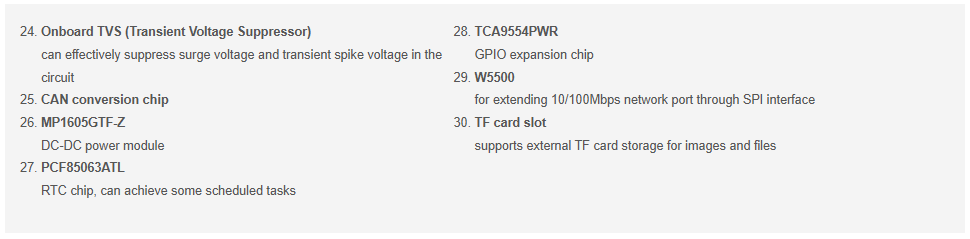

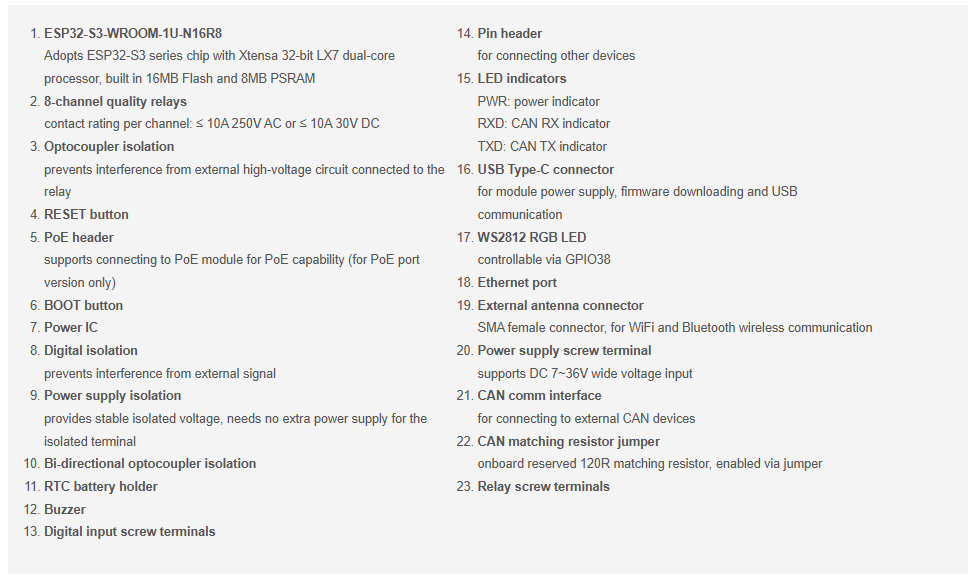

What's On Board

Enclosure Design

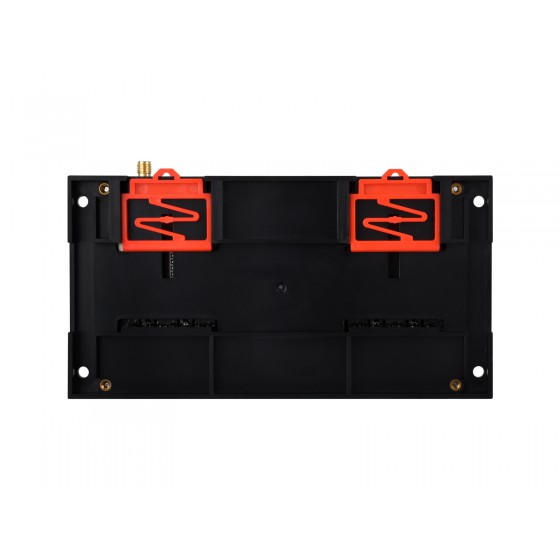

ABS Protection Enclosure With 35mm Rail-Mount Support, Easy To Install, Safe To Use

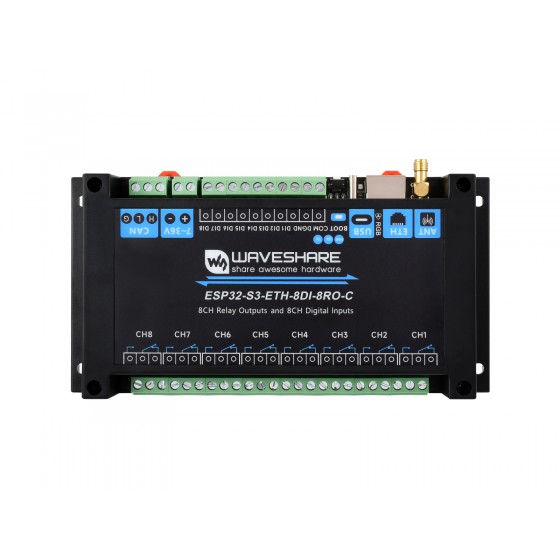

Outline dimensions

Common network port

Support Batch Customization

Support software and hardware customization

Including hardware interface, LOGO, label, case and web page, etc.

Wiki: www.waveshare.com/wiki/ESP32-S3-ETH-8DI-8RO-C

Features

Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
High quality relay, contact rating: ≤10A 250V AC / 30V DC
Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
Onboard isolated CAN interface, for connecting to various CAN devices
Onboard pin header, allowing access to other devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard RTC chip, supports scheduled tasks
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Onboard TF card slot for external TF card storage of images and files
Built-in buzzer, RGB LED, power supply and CAN TX/RX indicators for monitoring the operating status of the devices
Rail-mounted ABS case, easy to install, safe to use

Application Scenarios

Comments(0)

Upload photo

You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP

0 / 10000

Industrial 8-Channel ESP32-S3 WiFi Relay Module（Common network port）

Product ID: LP1277
In Stock

530

US $43.00

Quantity:

Exchange Method:

Cash

Bean

Add to cart

The commission ratio for sharing this product is 3.00%, login account and get your exclusive link! 1. Exclusive shared link
Each product has its own promotion link, you can share the link with your friends.
2. Successful transaction
Your friend places an order through the link, and the transaction is complete.
3. Get commission
You will receive a commission correspondingly proportional to the order amount.

Description

Features

Application Scenarios

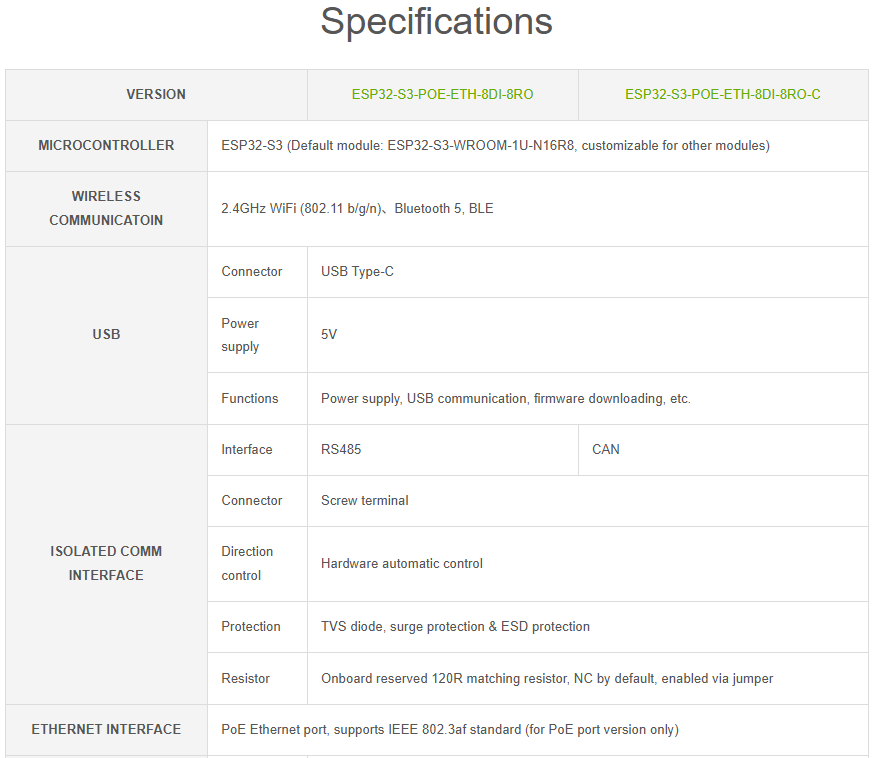

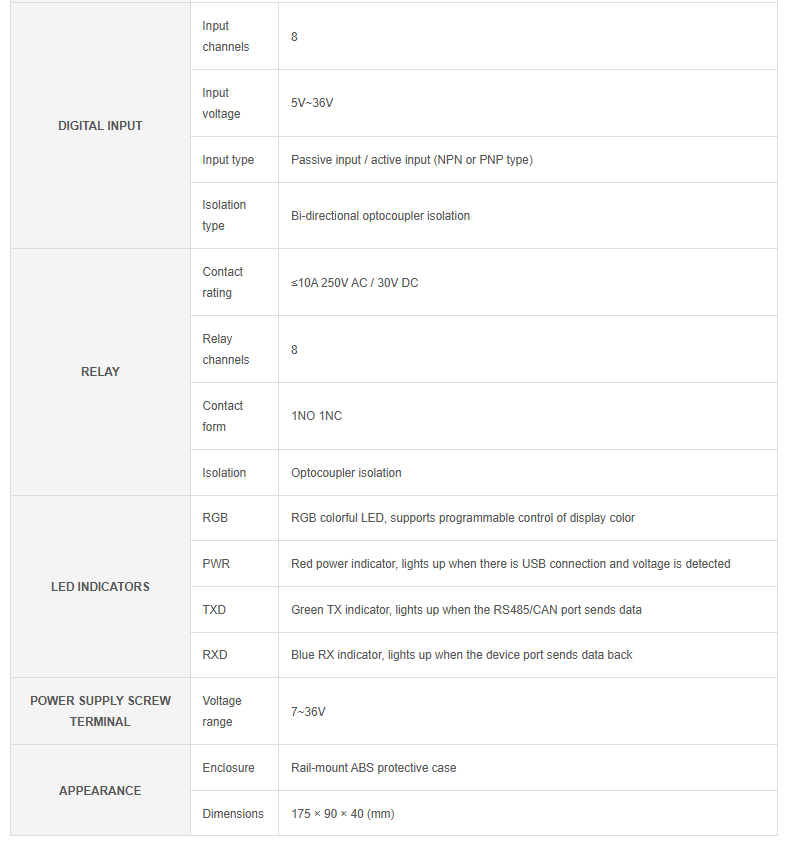

Product Specifications
