holding circuit

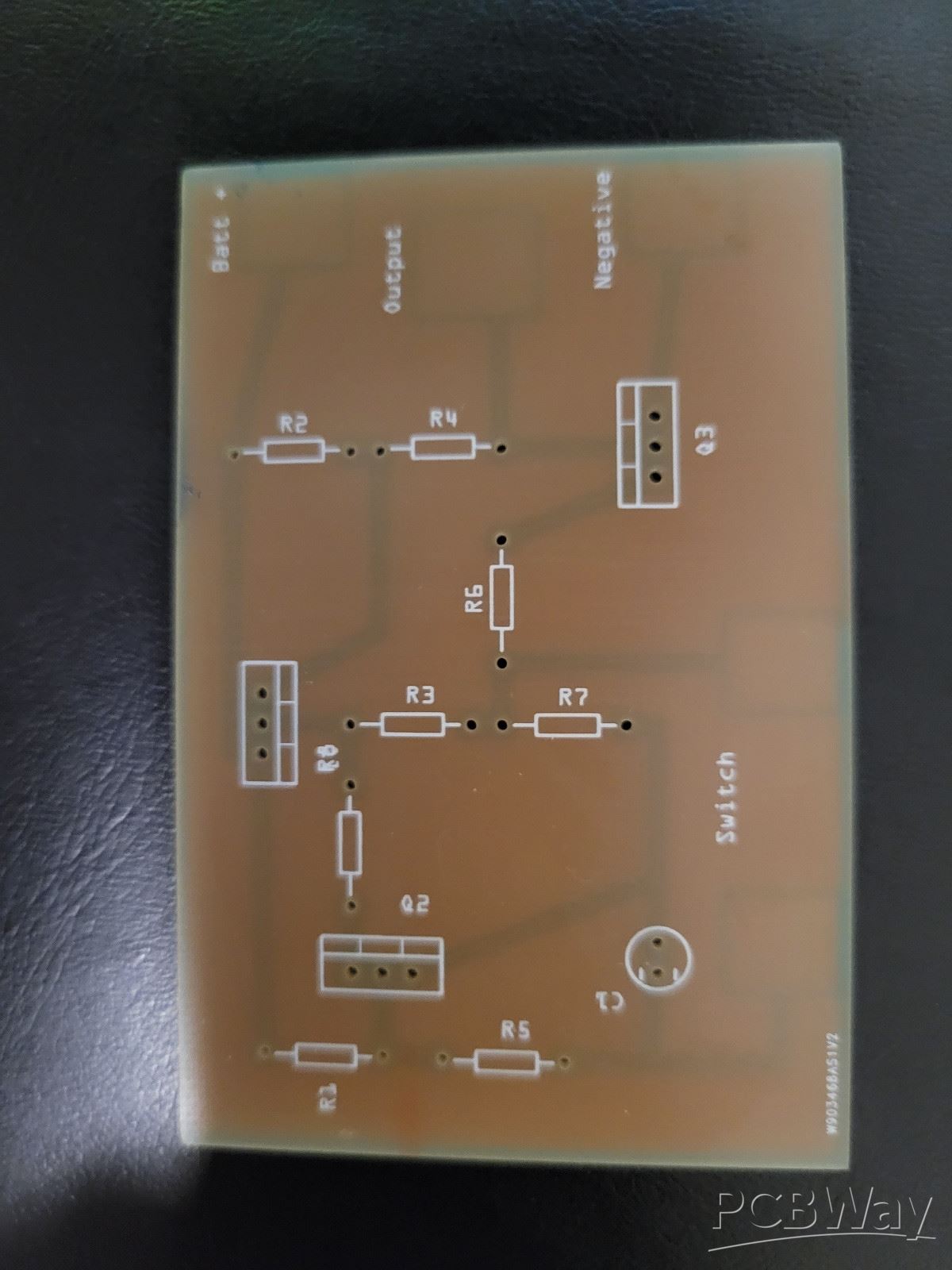

A board to use with a momentary dashboard switch. Didn't work because I made a mistake in my selection of components in Frizing, and I left out a trace. This was my first order from PBCWay and I am impressed with the quality of the board. I have already ordered my updated board from PBCWay and am waiting for another great board!



Sep 11,2025
